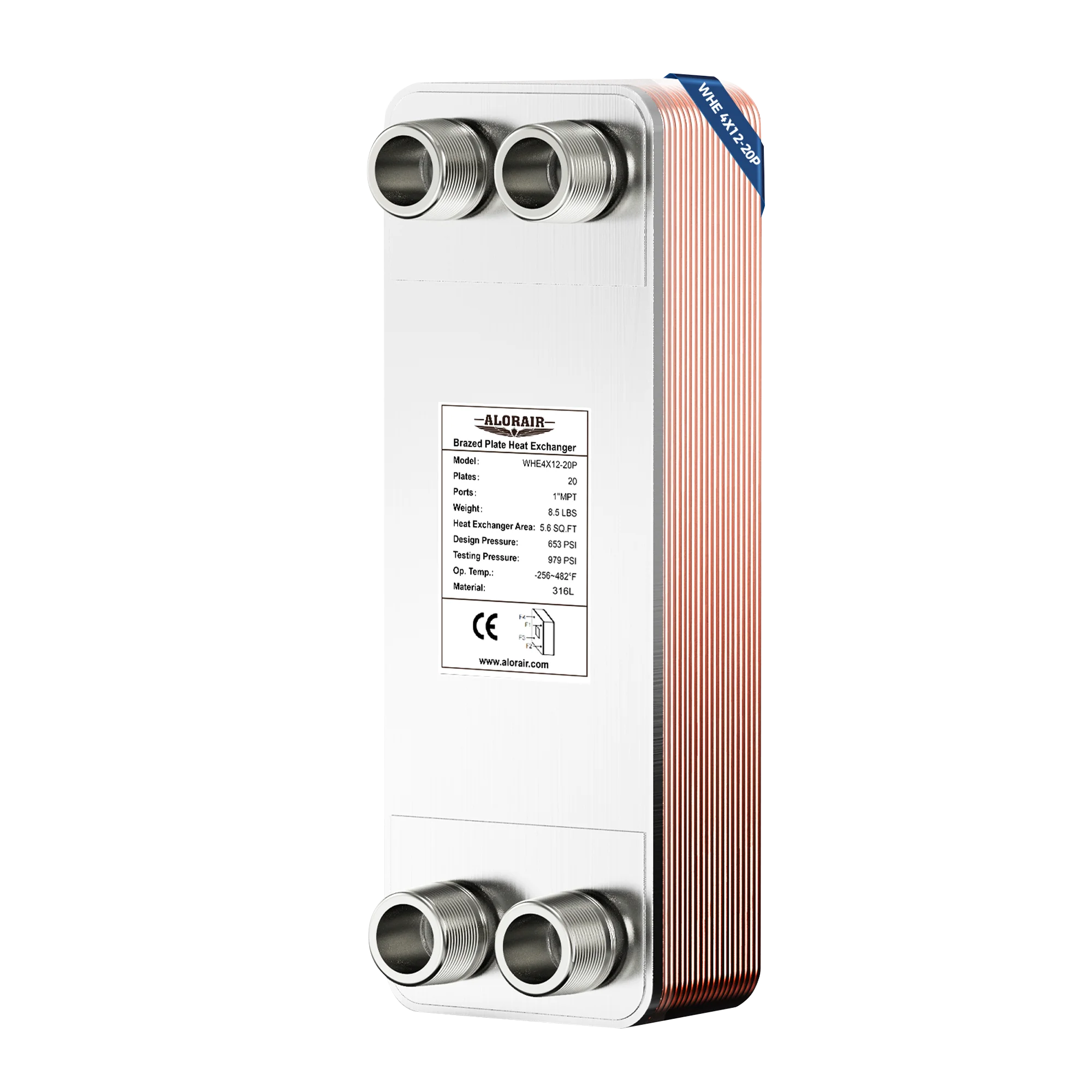

20 Plates – AlorAir 4” x 12” Brazed Plate Heat Exchanger
The 20 Plates – AlorAir 4” x 12”Brazed Plate Heat Exchanger delivers up to 275,000 BTU/hr with exceptional efficiency and durability. Built from 316L stainless steel and copper brazing, it withstands extreme temperatures and high pressure. The fishbone plate design boosts heat transfer by up to 99%. Ideal for heating, cooling, and industrial applications, it handles a wide range of fluids and comes with a one-year limited warranty.
$136.99
Availability: 100 in stock
FREE NATIONWIDE SHIPPING

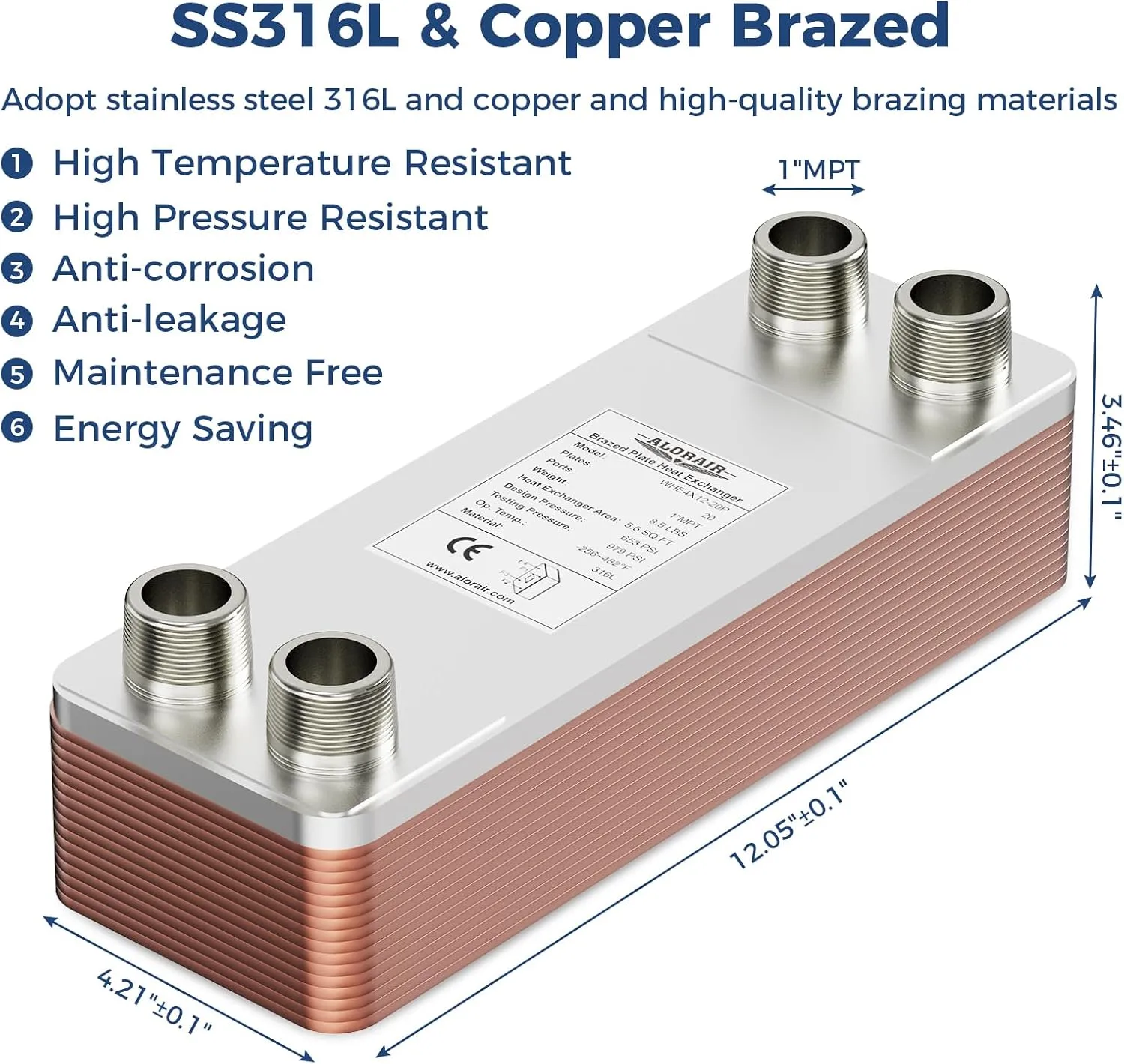

316L Stainless Steel & Copper Brazing
Engineered with 316L stainless steel and copper brazing under vacuum conditions, this heat exchanger is built to withstand extreme temperatures and offers exceptional structural integrity, corrosion resistance, and leak prevention for demanding environments.
Increased Heat Transfer Efficiency
The fishbone corrugated plate configuration enhances turbulence and minimizes pressure drop, achieving up to 99% improvement in heat transfer efficiency, ideal for high-performance thermal systems.
Optimized Thermal Performance
Ultra-thin stainless steel plates provide rapid and uniform heat exchange, enhancing both heating and cooling cycles while reducing energy consumption, system strain, and long-term maintenance demands.
Up to 275,000 Btu Capacity
The WHE4X12-20P model provides up to 275,000 BTU/hr with 20 precision-formed plates across a 5.6 sq. ft. transfer area. Its 4″ x 12″ plate size and 1” MPT ports offer a high-performance solution within a minimal footprint.
Easy Installation and Integration
Smooth-threaded connectors and a compact, modular form allow for fast integration into new or existing systems, minimizing setup time and reducing process interruptions.
Material Compatibility
Engineered to handle a wide range of fluids and materials. It supports diverse processing environments from standard industrial water to high-viscosity fluids, mildly corrosive acids and alkalis, pharmaceutical materials, fiber-laden liquids, and vapor, and gases.
1-Year Limited Warranty
Our brazed plate heat exchangers are backed by a one-year limited warranty, ensuring dependable long-term performance that delivers thermal efficiency and durability in critical environments.
| Model Number | WHE4X12-20P |
|---|---|
| Plates | 20 plates |
| Item Weight | 8 pounds |
| Product Dimensions | 12.05 x 4.21 x 3.46 inches |
| Material | 316L |
| Port | 1" MPT |
| Heat Transfer Area (sq. ft.) | 5.6 sq. ft. |
| Capacity (BTU per Hour) | |
|---|---|
| Domestic Water Heating | 271,000 |
| Floor Heating | 366,000 |
| Snow Melting | 276,000 |
| Boiler Flow Rate (in GPM) | |
|---|---|
| Domestic Water Heating | 14 |
| Floor Heating | 8.9 |
| Snow Melting | 10 |
| System Flow Rate (in GPM) | |
|---|---|
| Domestic Water Heating | 4 |
| Floor Heating | 8.9 |
| Snow Melting | 11 |
| Operating Temperature | -256°F – 482°F |
|---|---|
| Design Pressure | 653 PSI |
| Testing Pressure | 979 PSI |
